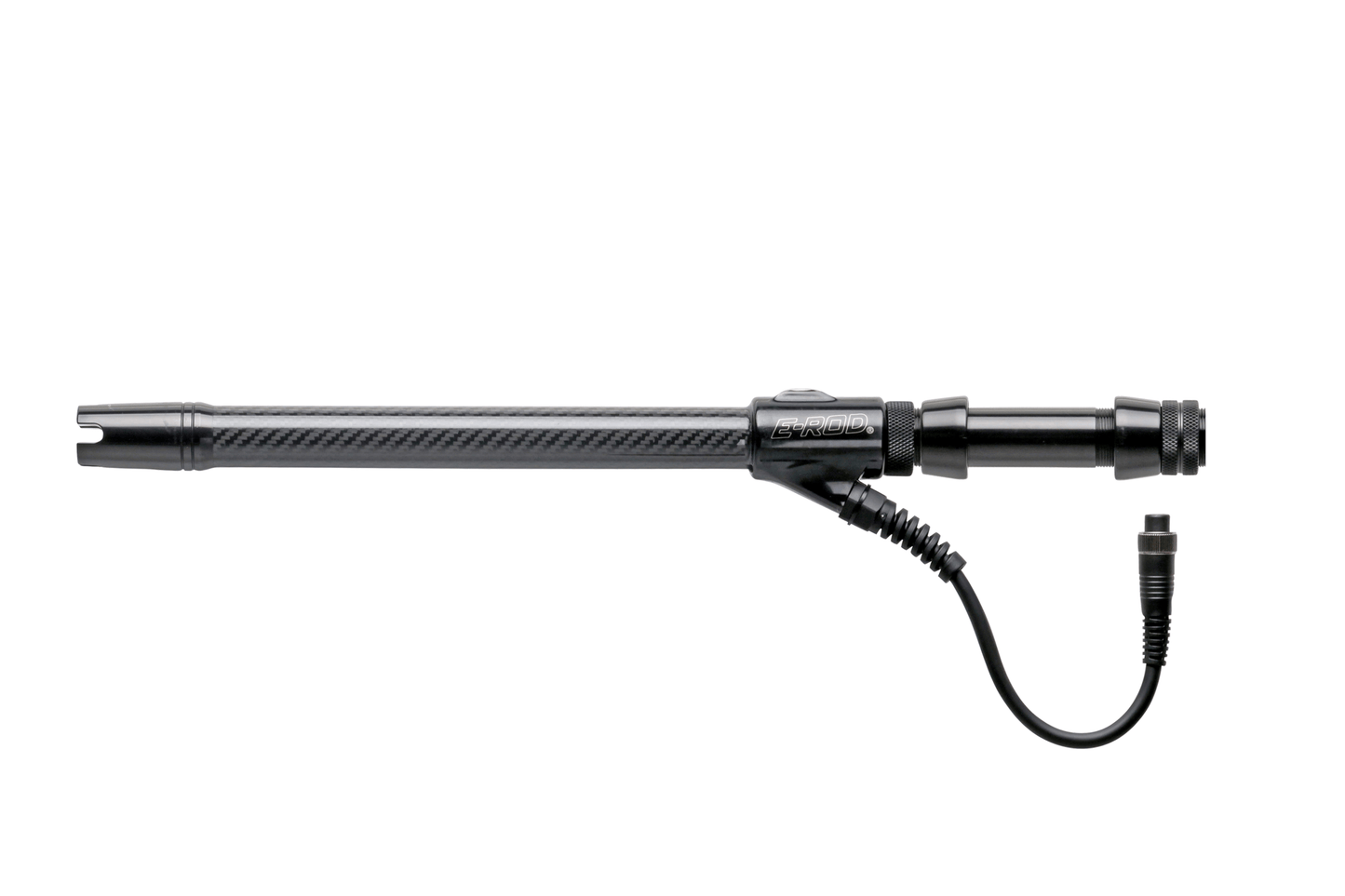

E-Rod^® HD Straight Butt w/ AFTCO reel seat

Our patented E-Rod Straight Butts are designed to power electric reels for KITEFISHING, HANDHELD deep dropping, AND TROLLING DREDGES/TEASERS

It will mount to almost any rod using a #2 ferruled connection.

• Our Patented HD Straight Butt Butt/Power Supply
• Carbon Fiber butt
• USA CNC components
• Aftco Storabutt Reel Seat (inter changeable)
• Anodized finish
• Premium LiFePo4 Cells
• Internal battery management system
• Fast charge interface
• 316 Stainless steel on/off switch
• IP 67 rated components

MADE IN USA

Most reels using a two pin connector

*Adapter available for larger two pin connections

Adapter is not needed for the following:

Diawa

TANACOM 1200, 800, 500, 500A, 500S

SEAPOWER 1200

SEABORG 600, 600MJ, 600J, 500, 500MJ, 500J, 500JP, 500JS, 300, 300MJ, 300J, 300MJL, 300JL, 300JS, 200, 200J, 200JL-DH, 200JL-SJ, 200JL, 200SJ

LEOBRITZ 500, S500, S500J, 500MT, 500J, 400, S400, S400J, 400MT, 400J, 300, S300, S300J, 300MT, 300J, 200, S200, S200J, 200MT, 200J

Shimano

13-21 BEASTMASTER 9000, 9000A, 9000ZB, 6000, 4000, 3000, 3000XP, 3000XS, MD 3000, 2000, 1000 .

13-21 FORCEMASTER 9000, 6000, 4000, 3000, 2000, 1000, 800, 600, 600DH, 400, 400DH, 401, 401DH, 300, 300DH, 301, 301DH

13-21 PLAYS 4000, DM 4000, 3000, 3000XP, DM 3000, 800, 600, 600OVS, 400, DM400, 400DH, 401, 401DH, 300, 300DH, 301, 301DH

15 PLEMIO 3000, DM 3000

Fits a majority of rods that use a #2 ferrule.

Guaranteed to work with the following rods/ferrules:

• AFTCO
• Winthrop
• PacBay
• Daiwa
• Shimano
• the majority of custom rod makers and top tier brands*

If you have concerns on fitment please contact us

• Total Weight: 1.9 lbs (with battery)
• Length: 21.5" (with reel seat)
• Line rating 200lb braid/mono
• Electrical output: 14.5 V, 24 amp max discharge (self regulating)
• Charge time: 90 min. or less
• Run Time: 20k-30k FT of retrieval per charge
• Electrical output: 14.5 V, 24 amp max discharge (self regulating)
• Cell Life: 1,500+ charge cycles

• System check at startup
• Overcharge & Discharge protection
• Short circuit Protection
• Self Governing to 24 amps to protect internal components and your reel
• Internal cell balancing
• Proprietary power management system improves run time
• Fast Charging: 90 min or less
