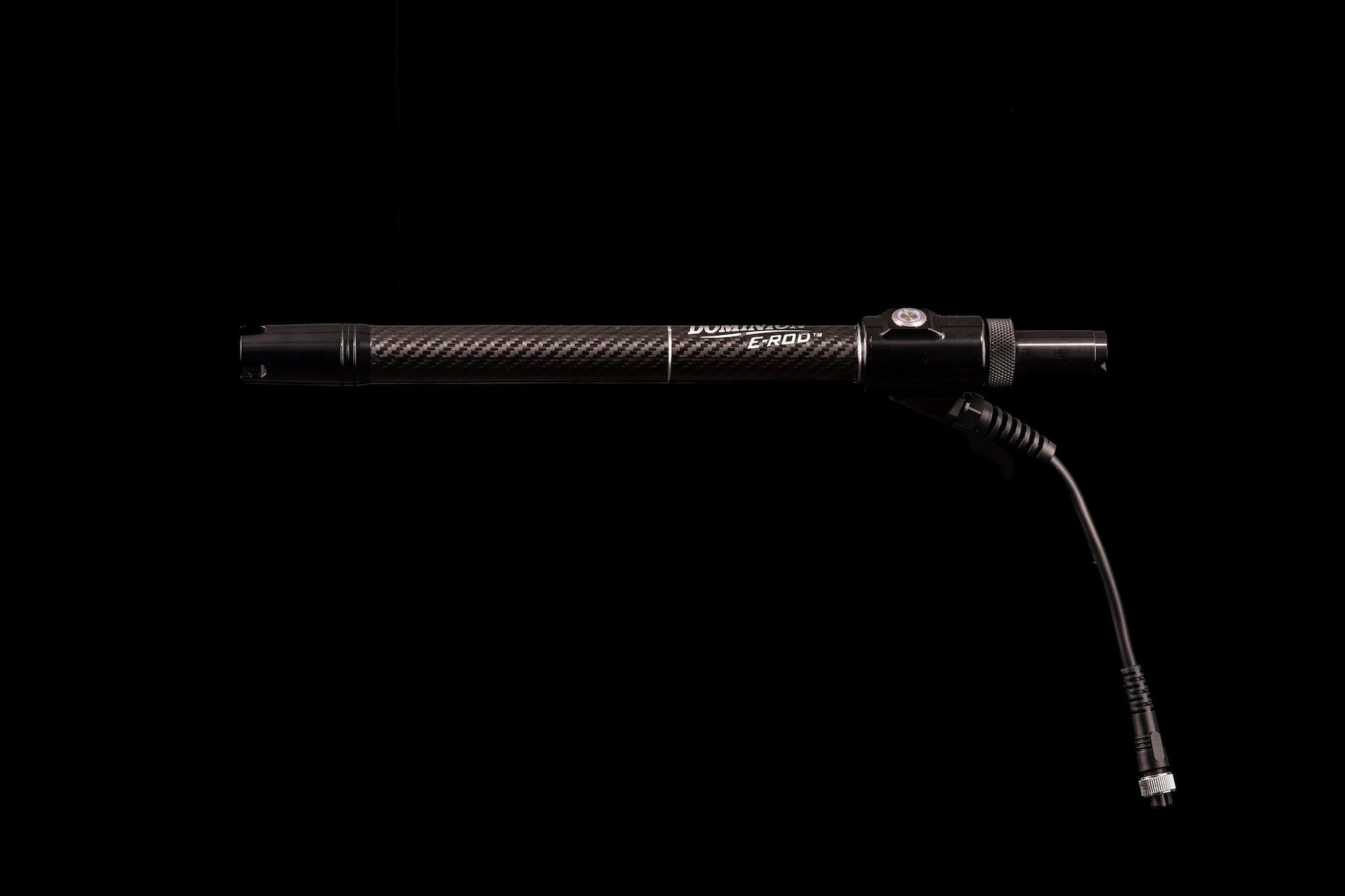

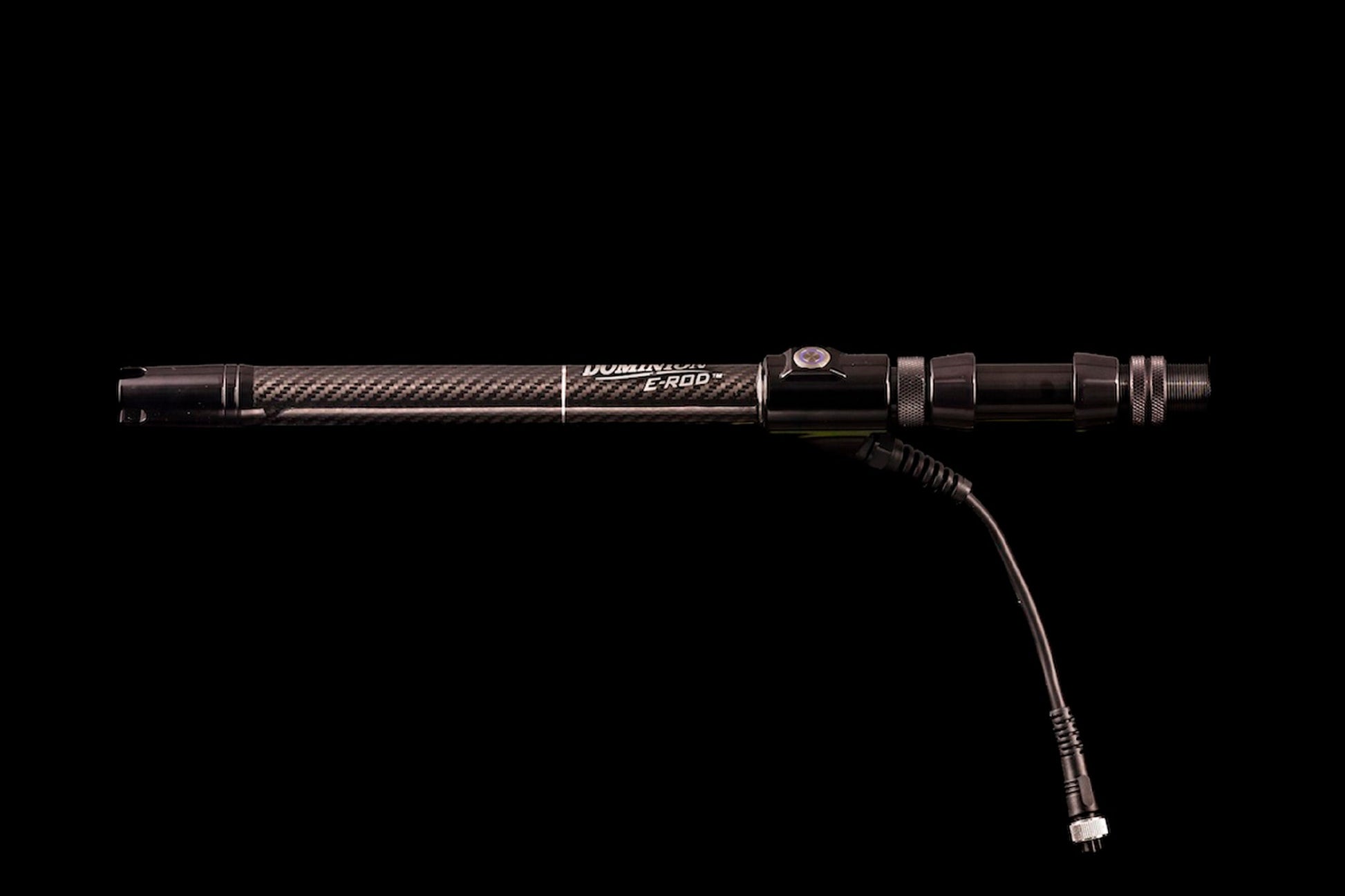

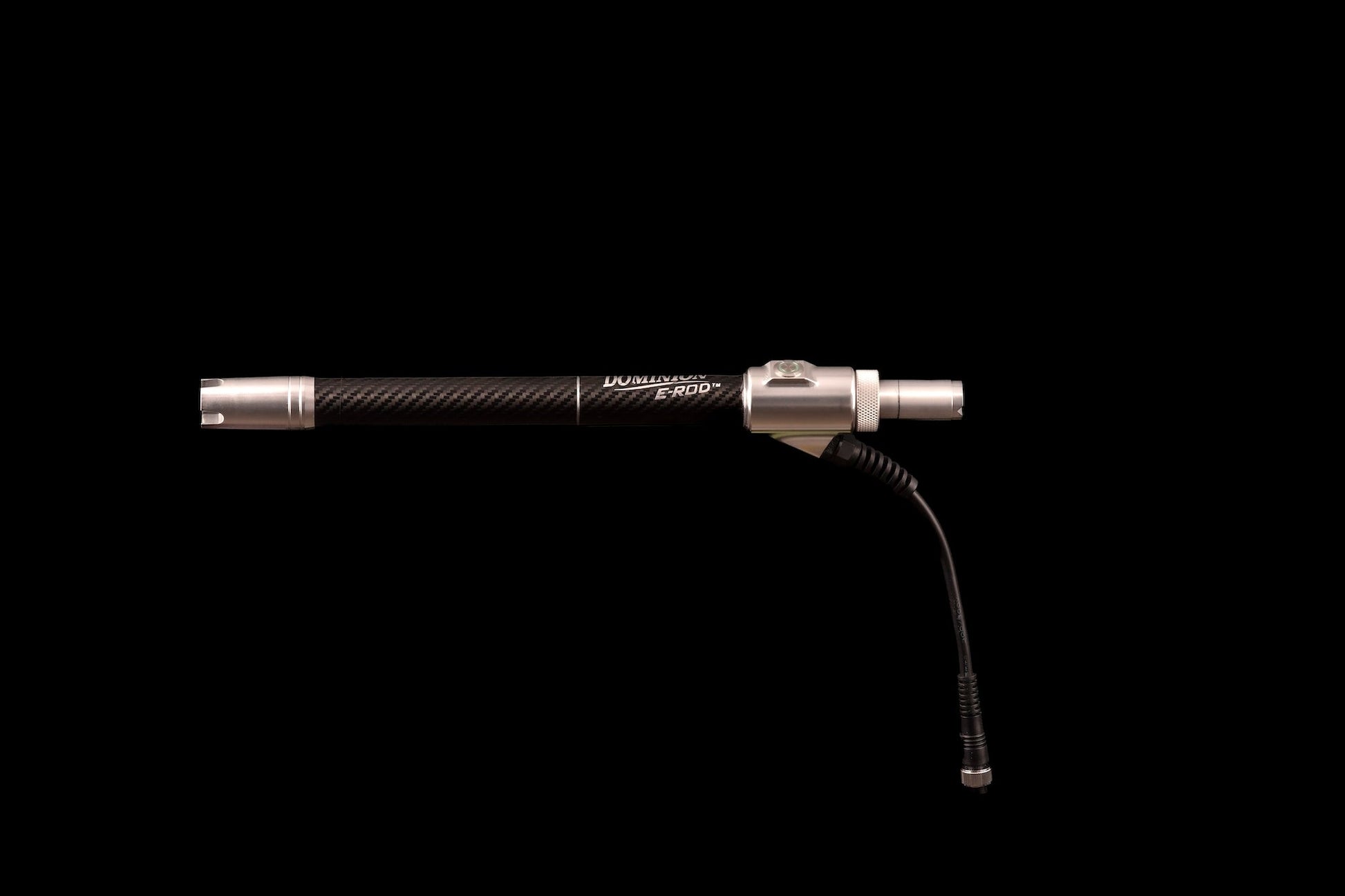

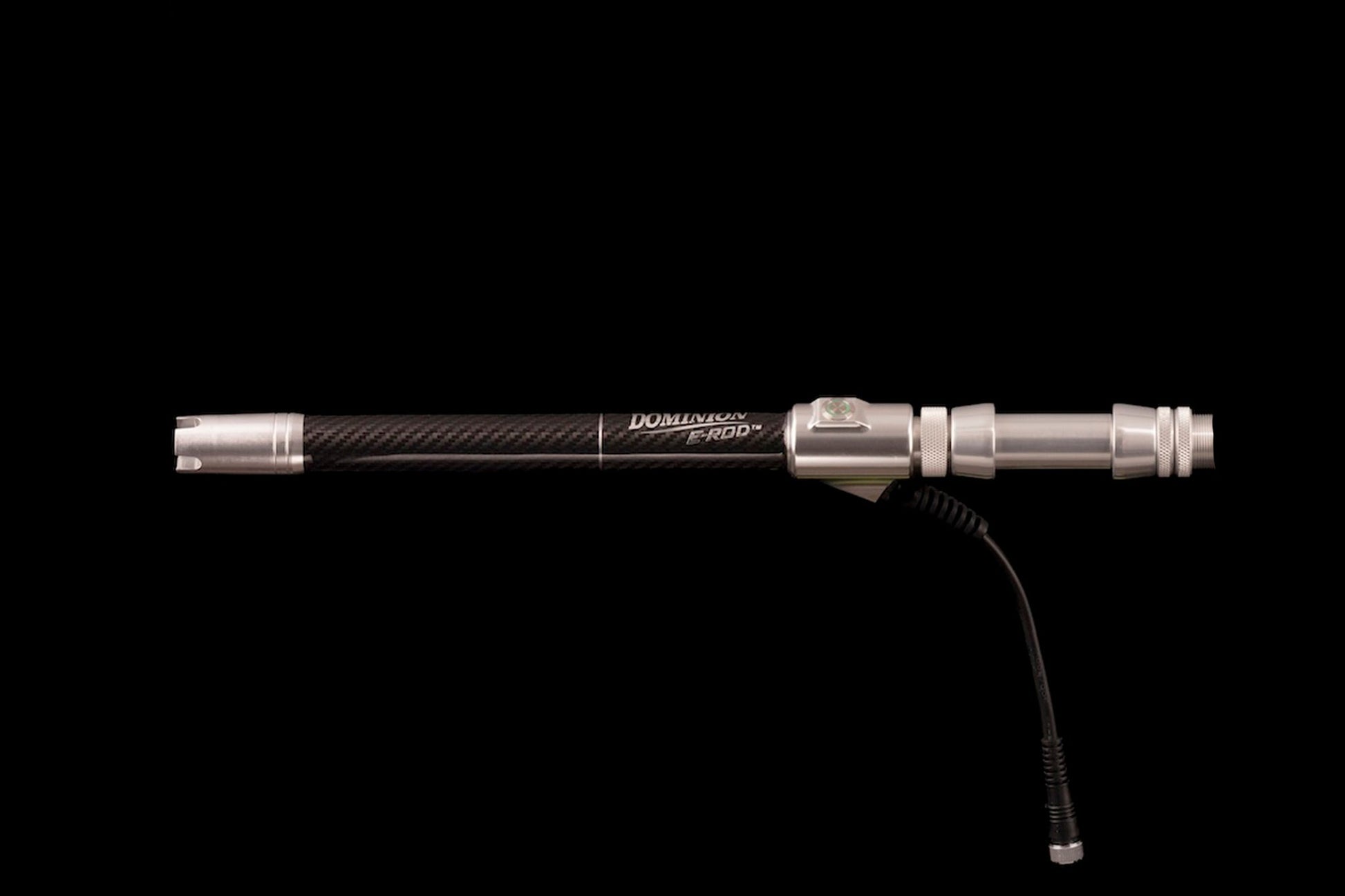

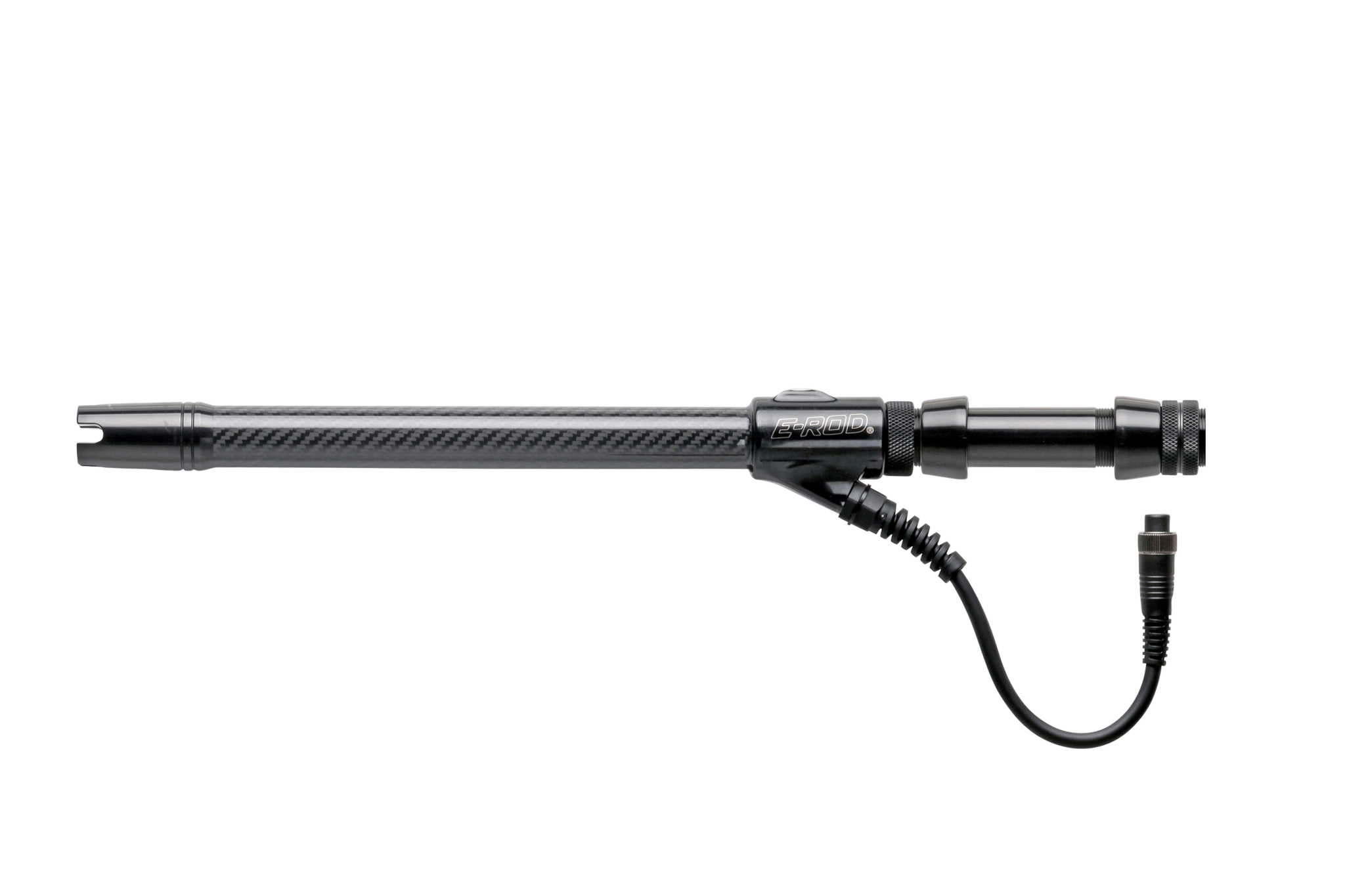

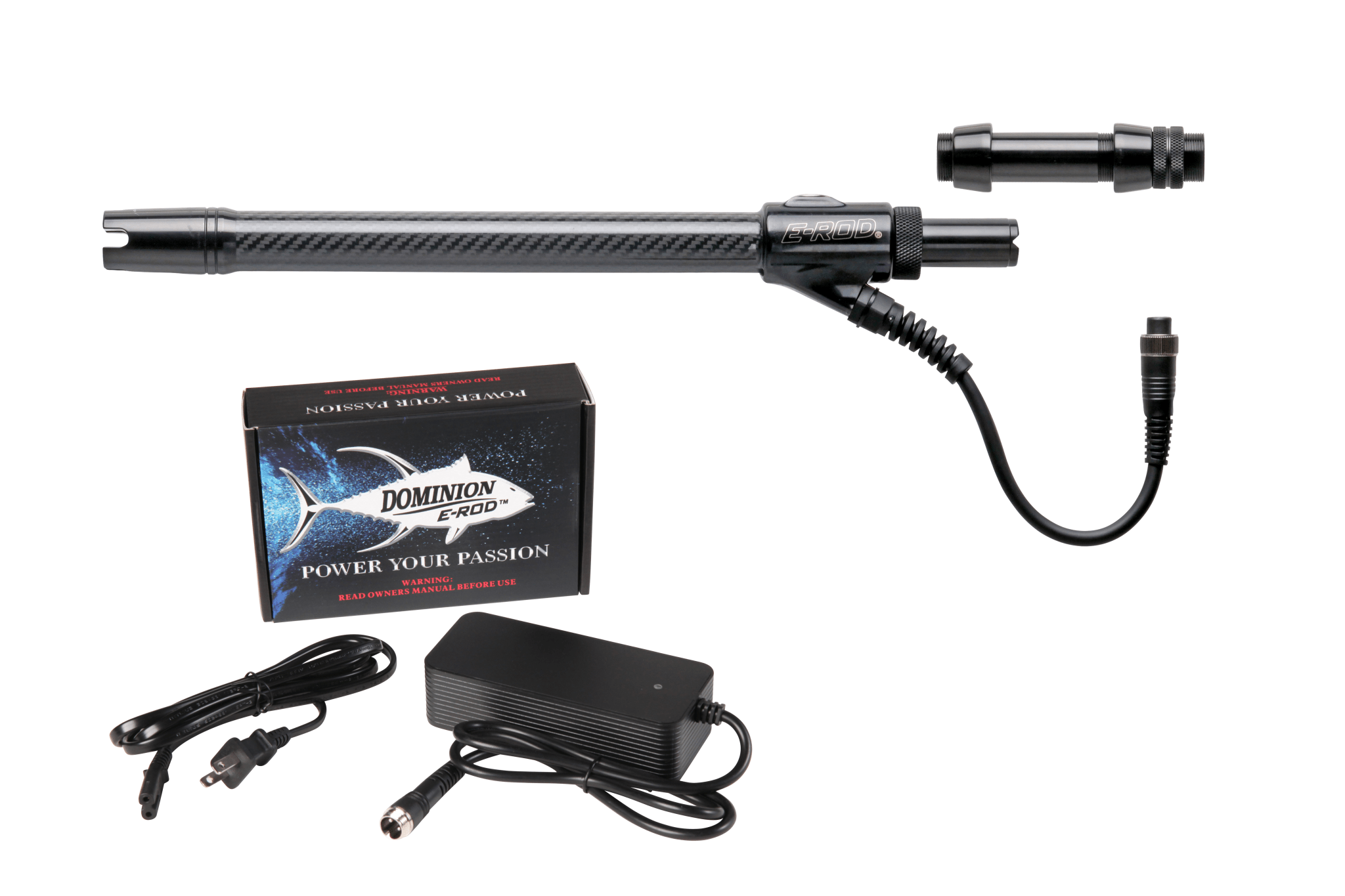

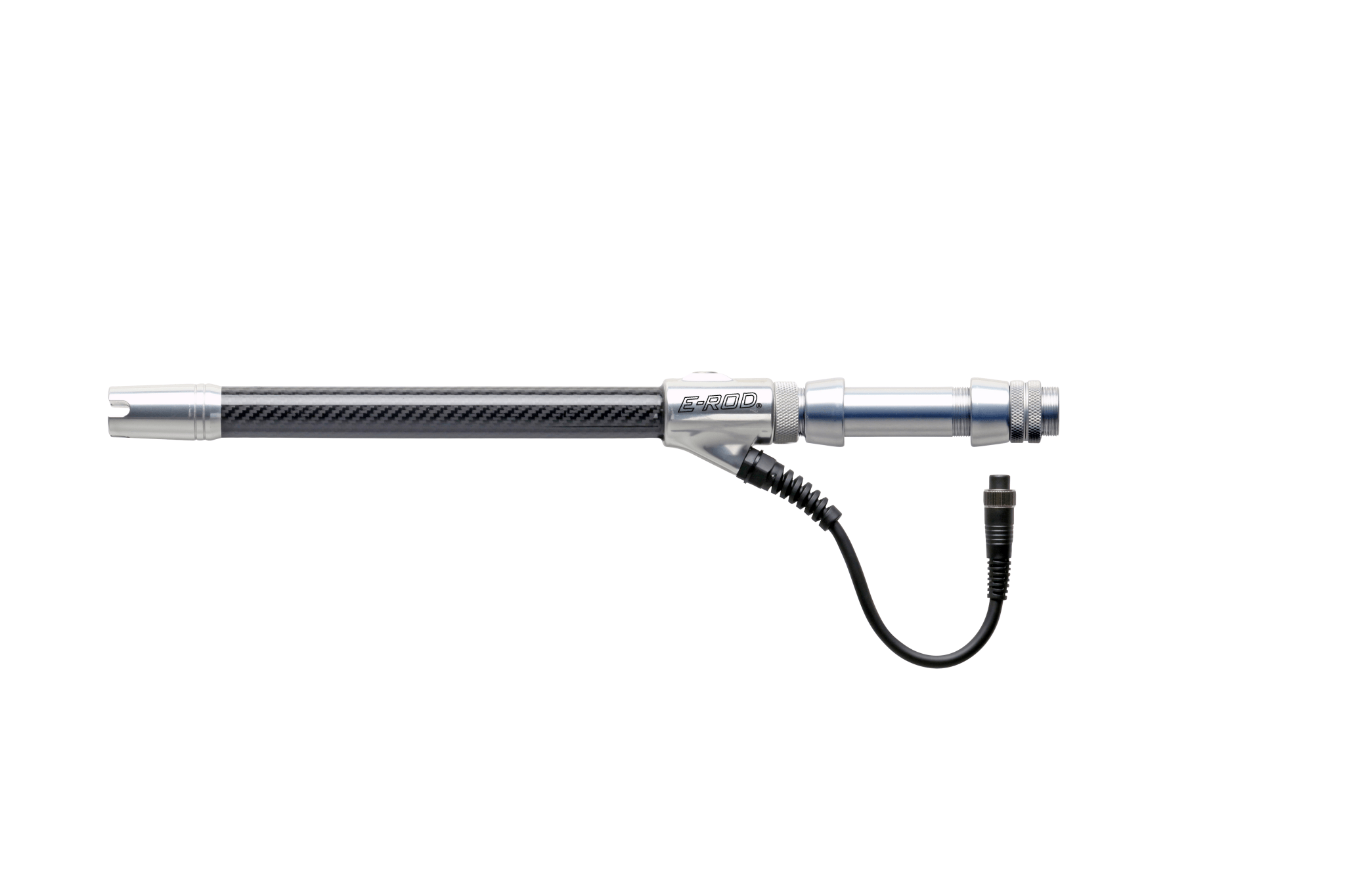

E-Rod^® HD Straight Butt w/ AFTCO reel seat

Our patented E-Rod Straight Butts are designed to power electric reels for KITEFISHING, HANDHELD deep dropping, AND TROLLING DREDGES/TEASERS

It will mount to almost any rod using a #2 ferruled connection.

• Our Patented HD Straight Butt Butt/Power Supply
• Carbon Fiber butt
• USA CNC components

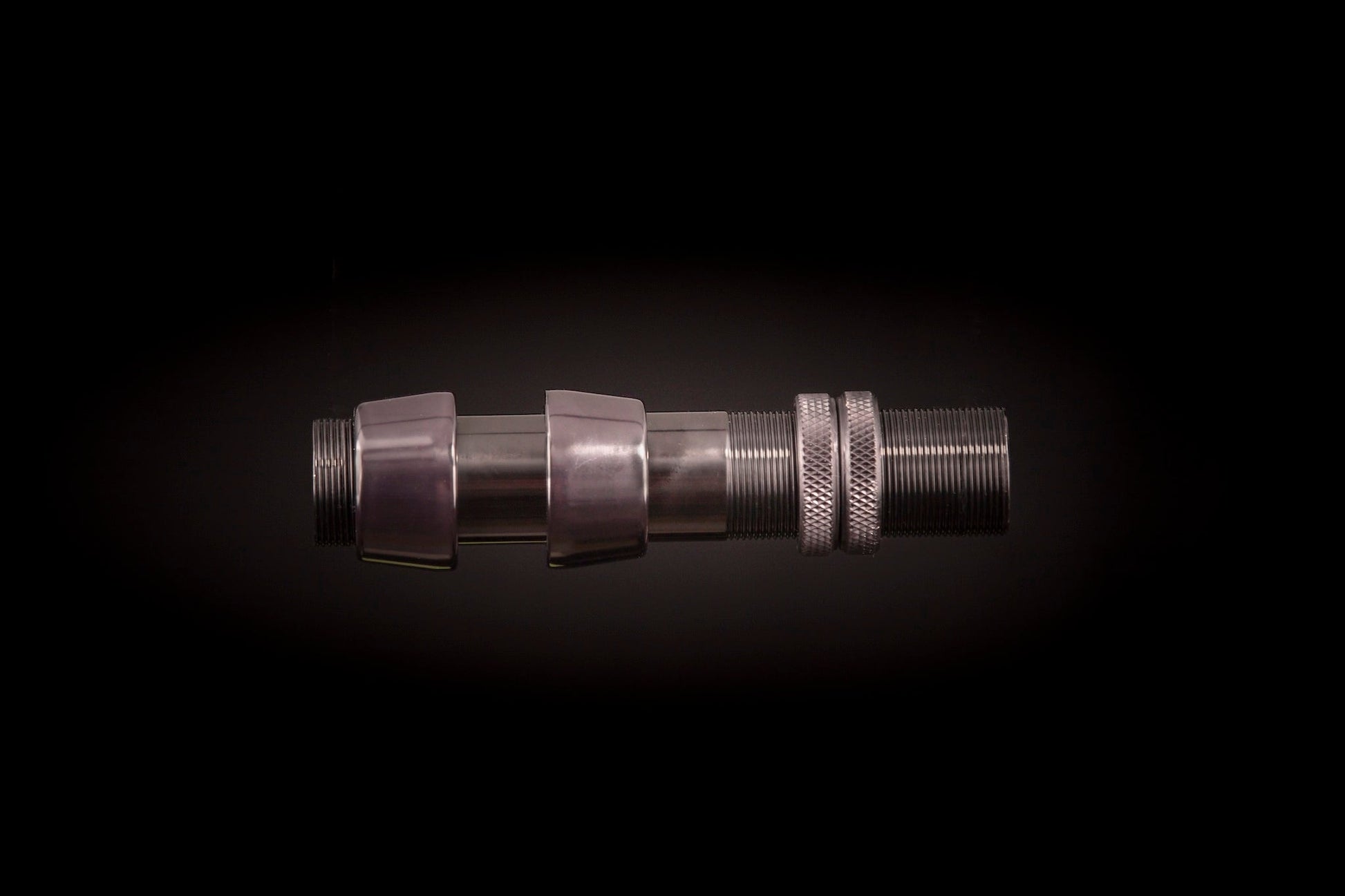

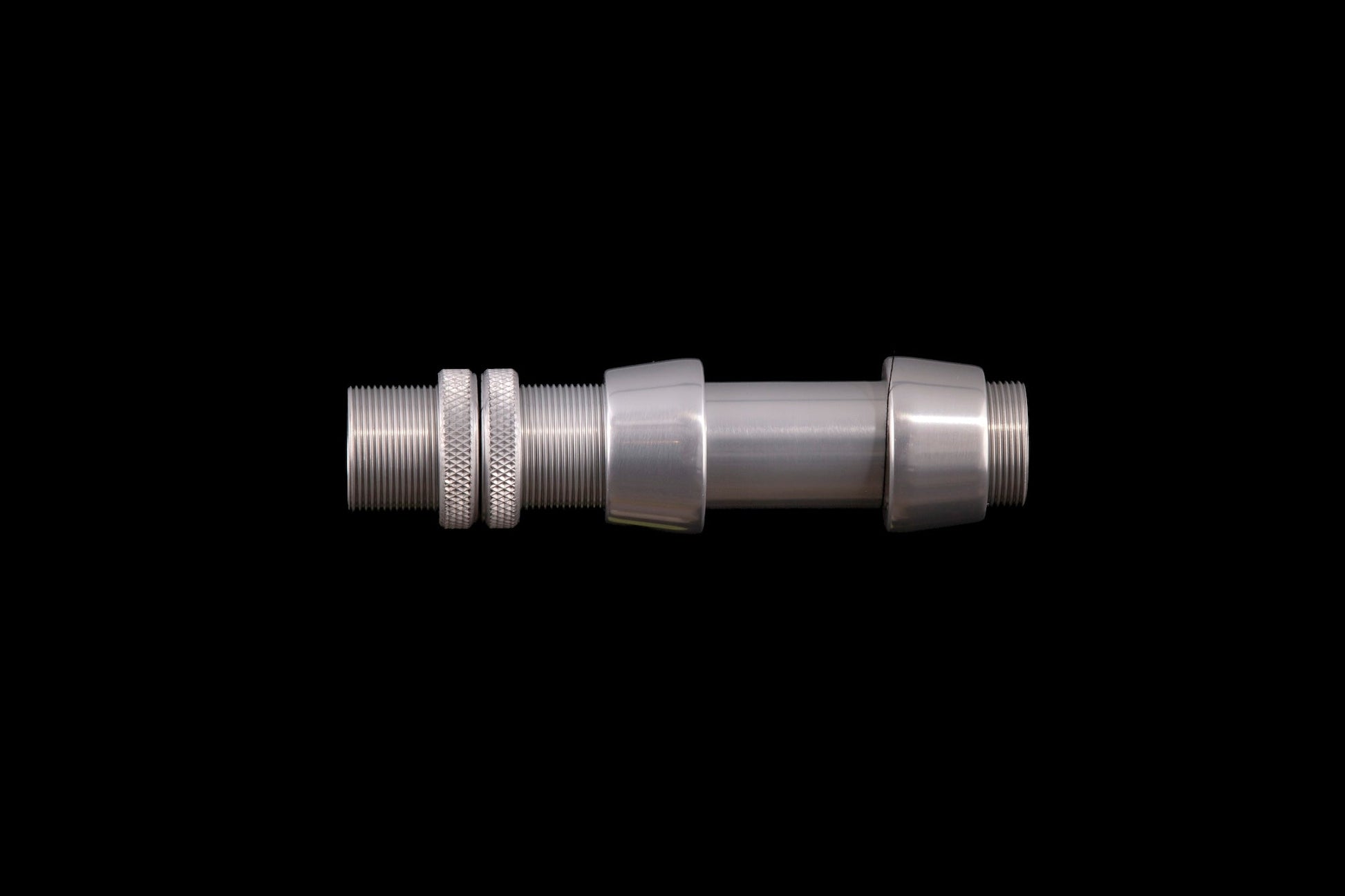

• Aftco Storabutt Reel Seat (inter changeable)
• Anodized finish
• Premium LiFePo4 Cells
• Internal battery management system
• Fast charge interface
• 316 Stainless steel on/off switch
• IP 67 rated components

MADE IN USA

Most reels using a two pin connector

*Adapter available for larger two pin connections

Adapter is not needed for the following:

Diawa

TANACOM 1200, 1000, Bull 1000, 800, 750, Bull 750, 500, 500A, 500S

SEAPOWER 1200

SEABORG 600, 600MJ, 600J, 500, 500MJ, 500J, 500JP, 500JS, 300, 300MJ, 300J, 300MJL, 300JL, 300JS, 200, 200J, 200JL-DH, 200JL-SJ, 200JL, 200SJ

LEOBRITZ 500, S500, S500J, 500MT, 500J, 400, S400, S400J, 400MT, 400J, 300, S300, S300J, 300MT, 300J, 200, S200, S200J, 200MT, 200J

Shimano

13-21 BEASTMASTER 9000, 9000A, 9000ZB, 6000, 4000, 3000, 3000XP, 3000XS, MD 3000, 2000, 1000 .

13-21 FORCEMASTER 9000, 6000, 4000, 3000, 2000, 1000, 800, 600, 600DH, 400, 400DH, 401, 401DH, 300, 300DH, 301, 301DH

13-21 PLAYS 4000, DM 4000, 3000, 3000XP, DM 3000, 800, 600, 600OVS, 400, DM400, 400DH, 401, 401DH, 300, 300DH, 301, 301DH

15 PLEMIO 3000, DM 3000

Fits a majority of rods that use a #2 ferrule.

Guaranteed to work with the following rods/ferrules:

• AFTCO
• Winthrop
• PacBay
• Daiwa
• Shimano
• the majority of custom rod makers and top tier brands*

If you have concerns on fitment please contact us

• Total Weight: 1.9 lbs (with battery)
• Length: 21.5" (with reel seat)
• Line rating 200lb braid/mono
• Electrical output: 14.5 V, 24 amp max discharge (self regulating)
• Charge time: 90 min. or less
• Electrical output: 14.5 V, 24 amp max discharge (self regulating)
• Charge time: 90 min. or less
• Run Time: 20k-30k FT of retrieval per charge
• Cell Life: 1,500+ charge cycles

• System check at startup
• Overcharge & Discharge protection
• Short circuit Protection
• Self Governing to 24 amps to protect internal components and your reel
• Internal cell balancing
• Proprietary power management system improves run time
• Fast Charging: 90 min or less
